China OEM Car Led Headlamp Factories – BT-AUTO G11B Fanless Universal LED Headlight Bulb 18 Months Warranty Wholesale CANBUS LED Bulb Car Headlamp – Bulletek
China OEM Car Led Headlamp Factories – BT-AUTO G11B Fanless Universal LED Headlight Bulb 18 Months Warranty Wholesale CANBUS LED Bulb Car Headlamp – Bulletek Detail:
| LED chips | 2 / 4* Lattice power HGL3(single, H4), 4*1860(H13,9004,9007) |
| Voltage-in | DC 9-32V |
| Current-start | 1.7A@12V, 1.4A@12V/H1,H3 |
| Power | 20W, 17W/H1,H3 |
| Lumen | 2000LM, 1500LM/H1,H3 |
| Working temperature | -40℃～+80℃ |
| Power efficiency | >87% |
| Beam angle | 270° |
| Color temperature | 6000K |
| CANBUS | CANBUS inside |
| Cooling type | Copper belt |
| Adapter | 360°adjustable |
| Life span | 30000+ hours |
| Warranty | 18 months |
| Lighting pattern | Low beam / High beam |
G11B LED Headlight features:
Unique new design:
Design patent: H4: 201830074892.9, H7: 201830073648.0,
Utility model patent: 201820275895.3, aluminum bulb body cover, for tighter, better protection, appearance and heat conduction,
PCB: double sides copper PCB, 1.6MM super slim, providing better lighting pattern,
Cooling system: integrated aluminum bulb body and copper belt,
Beam angle adjustable: 360°rotation, bulb adaptor fixed by the double rubber rings(with/without spring ball) or screws,
Waterproof: IP67, setting rubber rings for both of adaptor and base.
HGL3 / 1860 customized LED module chip:
Similar size as halogen filament, standard lighting pattern,
HGL3 Lattice Power LED: H1, H3, H4, H7, H8/H9/H11/H16(JP), 5202/H16(EU), 9005, 9006, 9012, PSX24, PSX26, D2S.
1860 customized LED: H13, 9004, 9007.
High Power & Lumen & LUX:
High power: 20W/single,H4, 17W/H1,H3; High lumen: 2000LM/single,H4, 1500LM/H1,H3;
High lux: 3 times than halogen.
Good Lighting Pattern:
Double sides copper PCB, 1.6MM super slim, providing better lighting pattern; HGL3 LED module chip is same size as the halogen’s filament; Original 15° cutting line for low beam, without glaring; Wider and 3 times brighter than halogen; Pass Japan vehicle lighting test.
G11B LED Headlight bulb is mainly for reflector headlight kit.
Efficient heat conduction & dissipation system:
Double sides copper PCB for better heat conduction than aluminum; Integrated aluminum body for better heat conduction than separated body; 4pcs copper belts for efficient heat conduction and dissipation.
Smart 360°adjustable adapter:
H4, H7: the adapter is fixed by double rubber rings and fixed spring ball, utility model patent(No.:201820275893.4),
H1, H3, D2S, 9004, 9007: the adapter is fixed by double rubber rings,
H8/H9/H11/H16(JP), 5202/H16(EU), 9005, 9006, 9012, PSX24, PSX26: there is a screw for positioning adapter,
H13: 45°* 8 fixing holes.
Small driver:
Voltage input: DC 9-32V; CANBUS built-in; Non-polarity; No electromagnetic interference; Die-cast aluminum cover for better protection, heat conduction and dissipation; Size: 56.0*29.5*17.0mm; Laser logo is accepted.
Small base/size:
H4: diameter φ30mm, height 32mm; H7: diameter φ30mm, height 33.6mm,
H11: diameter φ30mm, height 34.7mm; 9005: diameter φ30mm, height 33.3 mm.

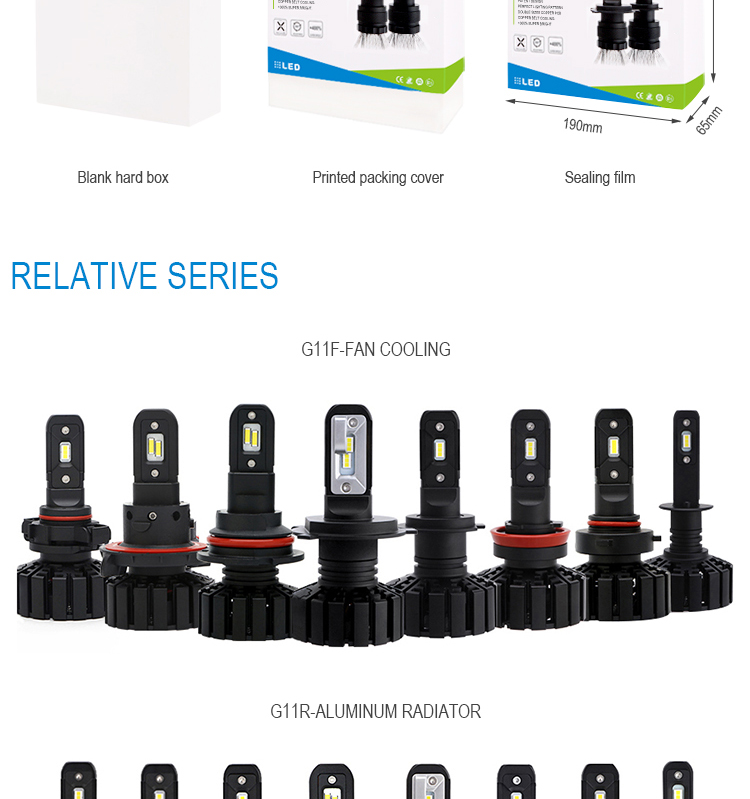

Package:
Soft box: 190*180*65mm, 2pcs/set; Carton box: 41*38*37 cm, 20sets/carton; Customized is accepted.
Welcome OEM and ODM for all BT-AUTO LED Headlight bulb.
Product detail pictures:
